Jeff’s quickie page of vintage and unusual LCD:

Liquid Crystal Displays

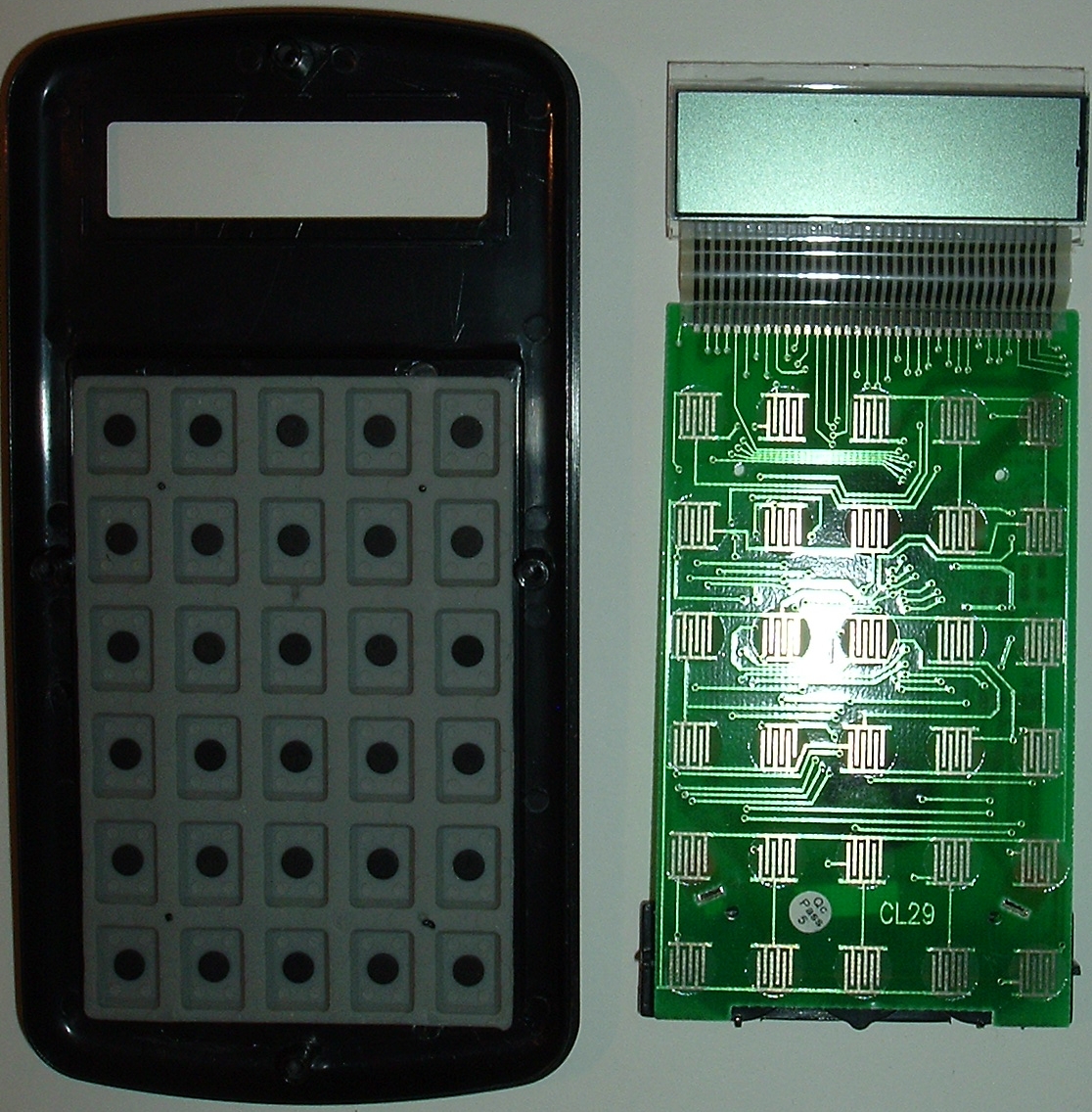

This is from a neighbor: it gives directions to nearest gas station, etc. BUT THE ROM DATABASE CANNOT BE UPDATED! Definitely surpassed by GPS now.
IF I want to re-use the 14 segment LCD, it looks *possible* since it's a ribbon cable. But is it soldered or glued?

Lots more to come!

Spec Sheets

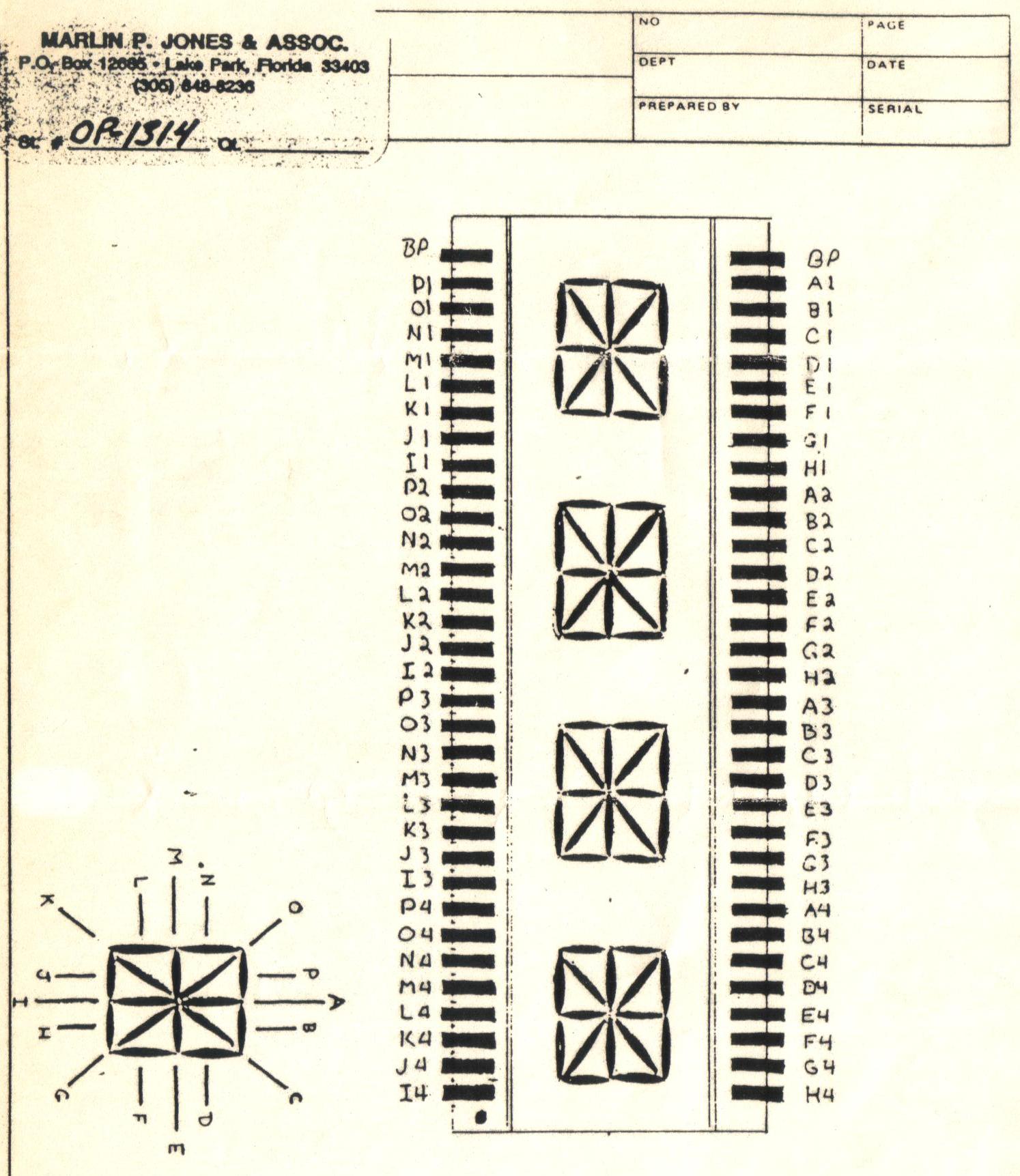

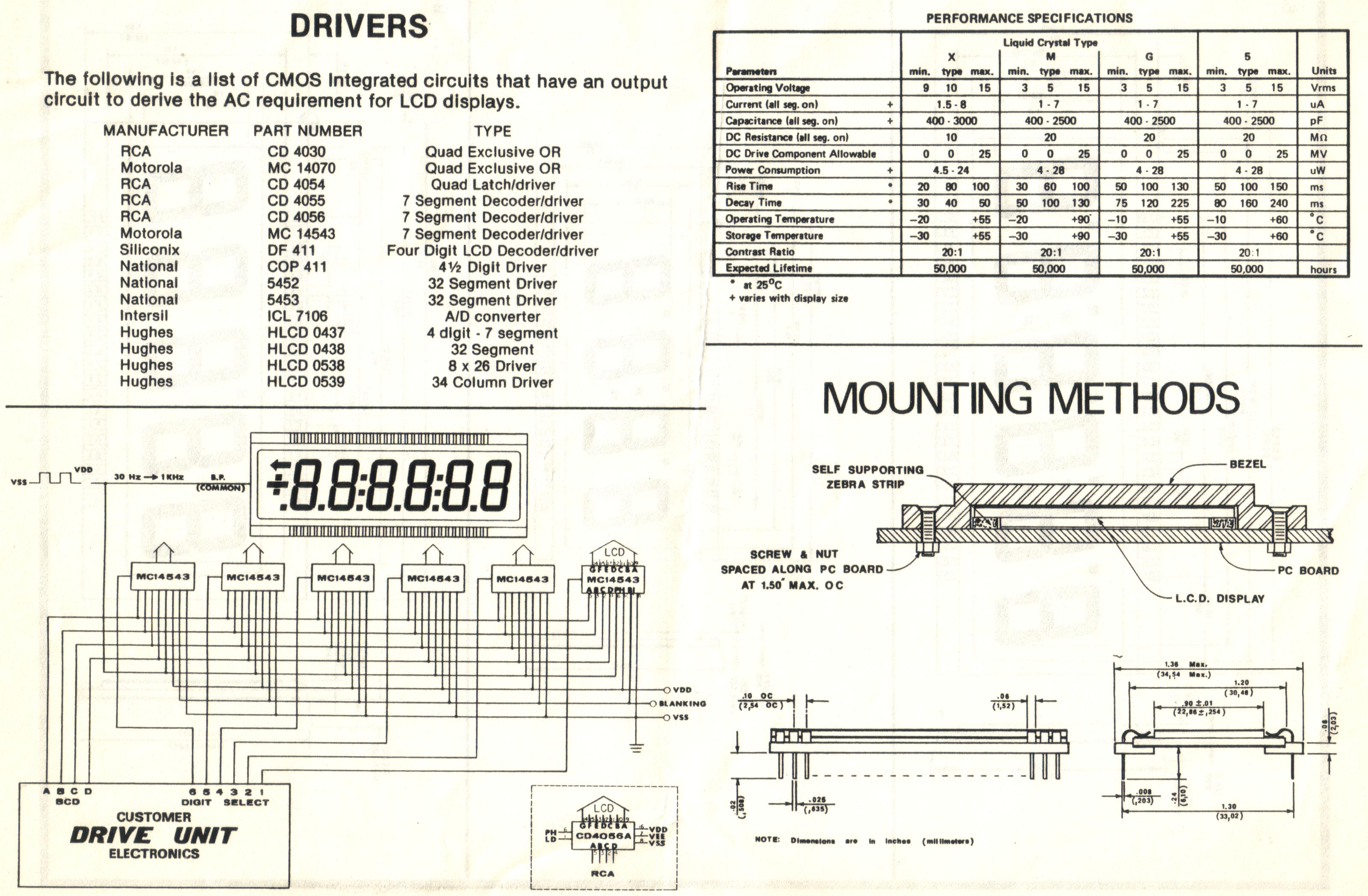

bare glass LCD: OP-1314 4 character 14 segment, controllers

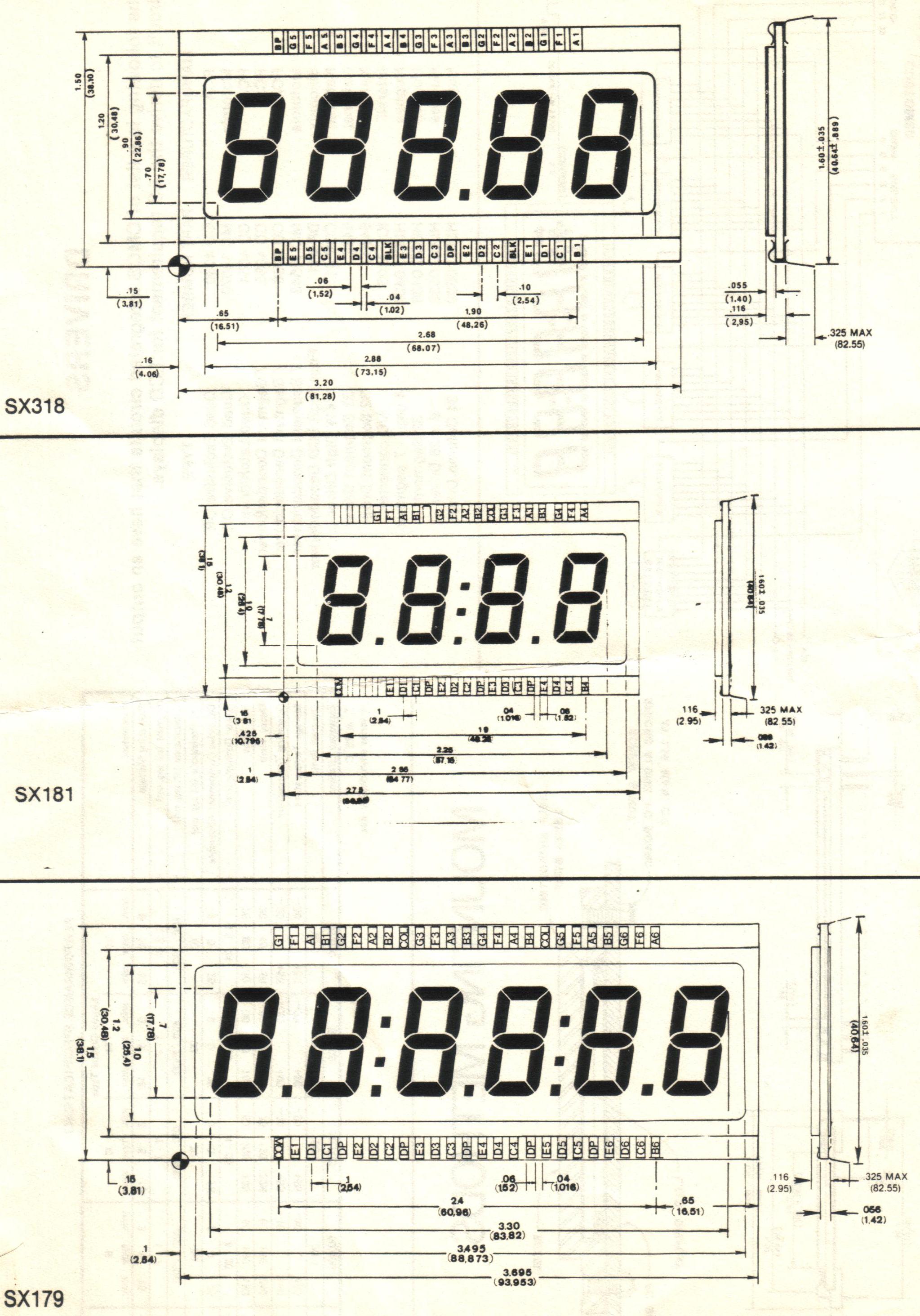

SX181 4 digit, SX318 5 digit, SX179 6 digit 7 segment LCD

LCD degradation

LCDs seem to fail when the liquid evaporates, usually starting at the edges.

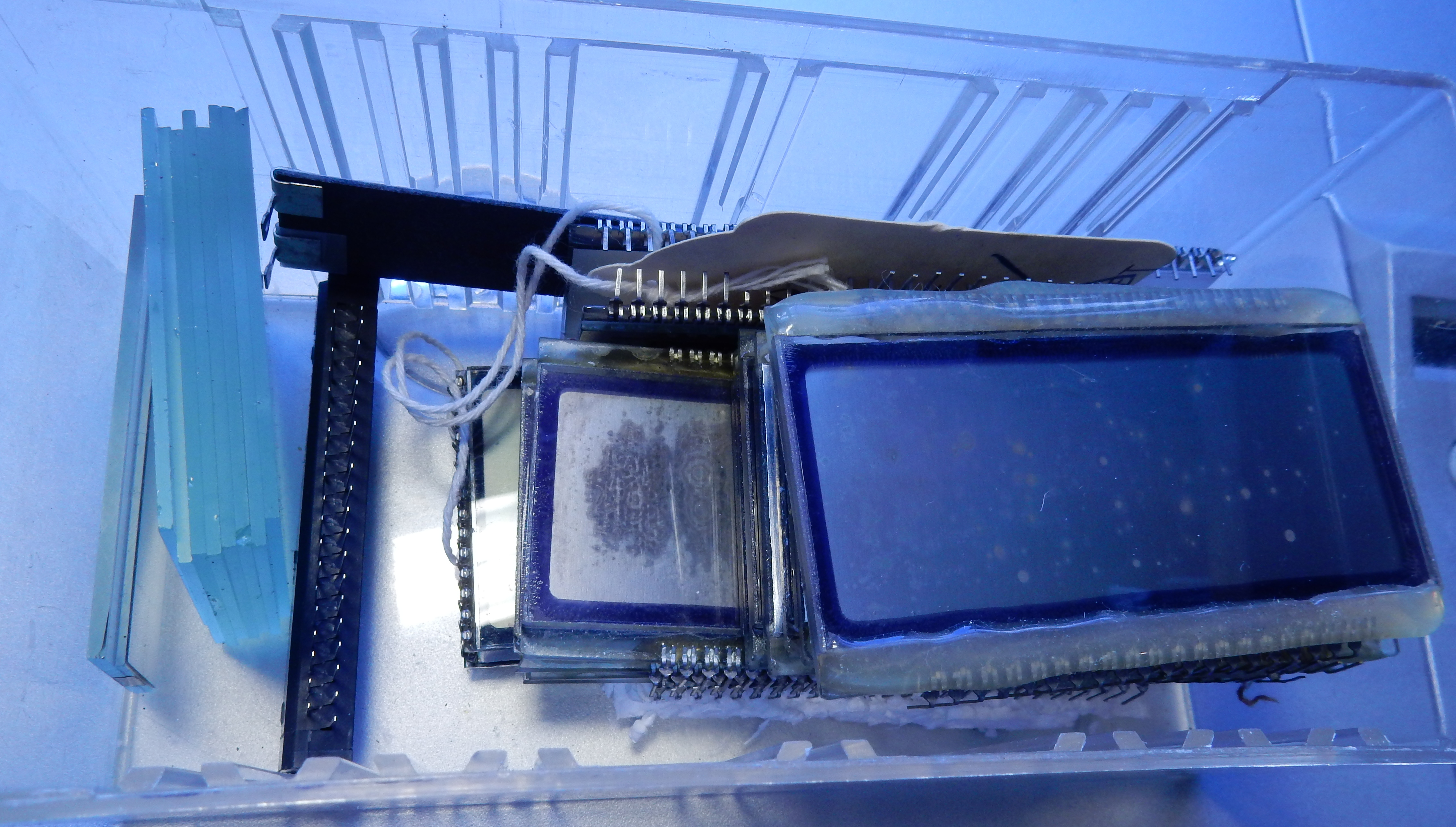

	My drawer of vintage LCDs from 80s surplus catalogues I wonder if one going bad ruins the others

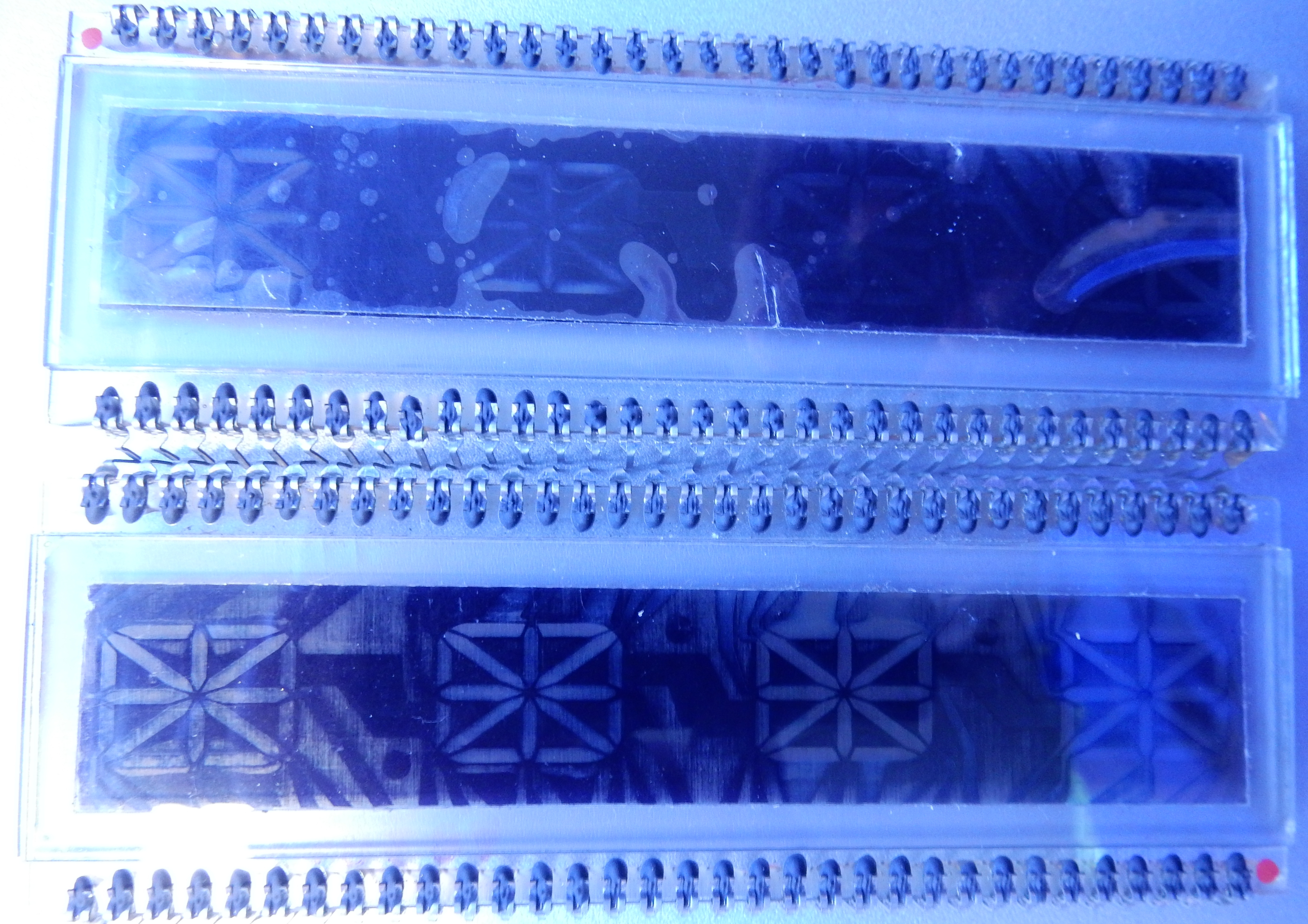

	The OP-1314 4 character 14 segment have both gone dark

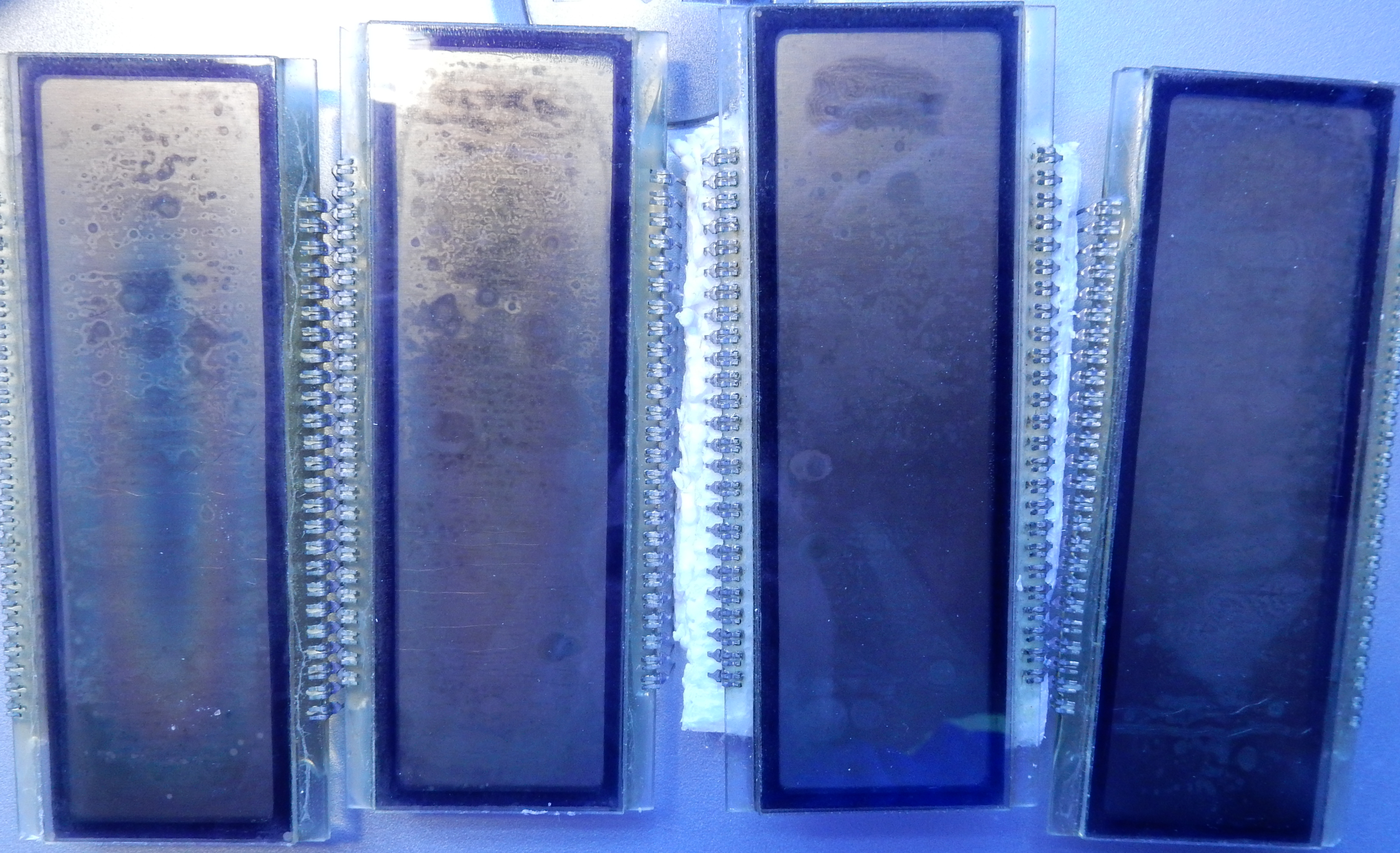

	The SX179 6 digit 7 segment LCDs are darkening from the center

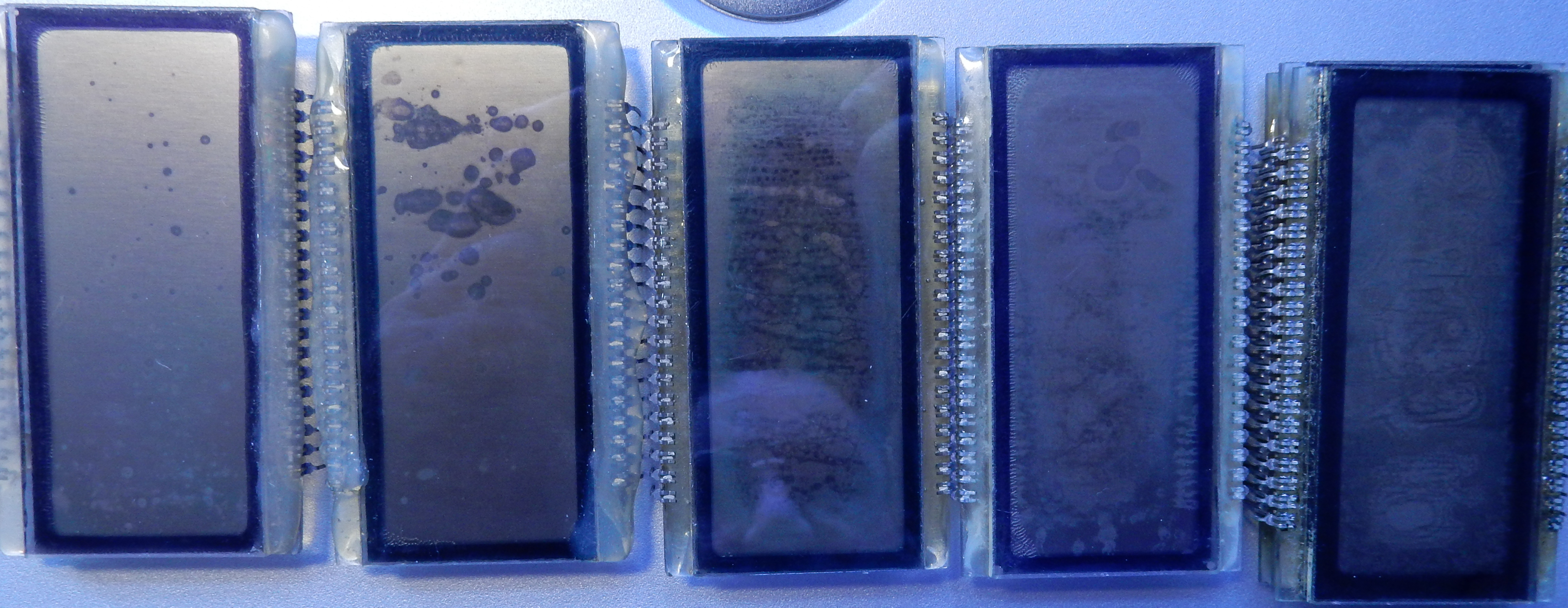

	The SX181 4 digit 7 segment LCDs are darkening from the center

other LCD resources

Dave Jones' EEVblog #1044 - LCD Technology Tutorial: part 1
EEVblog #1045 - How To Drive an LCD: part 2
EEVblog #313 - Bus Pirate LCD Debugging
LCD4Linux is a small program that grabs information from the kernel and some subsystems and displays it on an external liquid crystal display.
LCD Smartie is software for Windows that you can use to show lots of different types of information on your LCD/VFD. It supports LCD/VFD's with a Hitachi HD44780 Controller, a Matrix Orbital Serial/USB LCD, Crystalfontz Serial/USB LCD, Seetron Serial LCD/VFD, IRTrans driven VFDs, SoundGraph iMON VFDs, Futaba VFDs, Pertelian LCDs, VL System L.I.S VFDs, IEE Inc. VFDs, and PalmOS devices (when used with PalmOrb).
